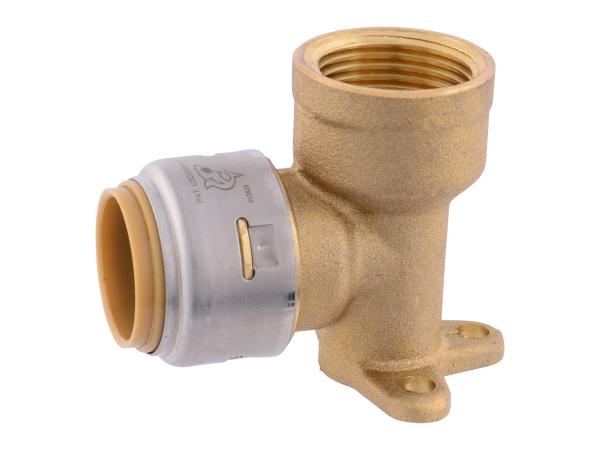

Sharkbite Max Push Drop-Ear Elbow

SharkBite Max drop-ear elbow is designed to make a 90-degree connection between PEX, copper, CPVC, PE-RT or HDPE SDR-9 and a MNPT threaded connection.  Typically used for installing shower arms and tub spouts. Approved for underground and behind-the-wall applications with no access panels.

• Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.*
• Half the insertion effort, double the pressure rating.**
• Can be installed on wet lines and pressure tested immediately.
• Stainless steel retainer adds strength and durability.
• High-performance DZR lead-free brass body.
• No special tools, crimping, soldering or glue required.
• Can be rotated after installation.
• No tube liner required for PEX.
• Rated to 200°F and 400 psi.
• Can be easily removed using a disconnect clip, disconnect tongs or pro disconnect tool.


*SharkBite push-to-connect fittings are the fastest when compared to other conventional plumbing methods.
**Comparison relates to 1st generation SharkBite push-to-connect products.
