Big Green Egg Temperature Gauge

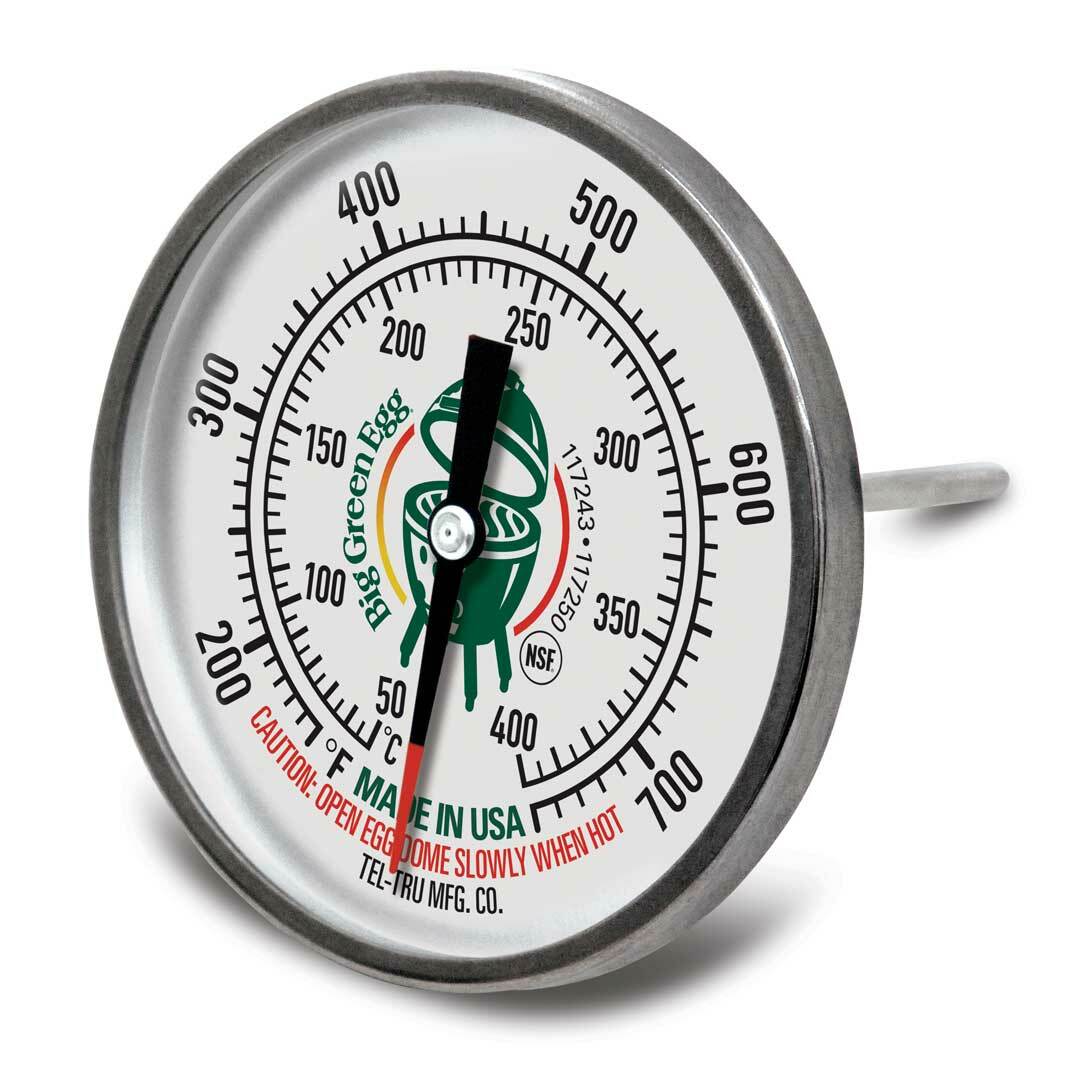

Oversized 3 in (8 cm) Dial Stainless Steel External Temperature Gauge – 117250

• 750F° / 400C°
• Works with 2XLarge, XLarge, Large, Medium, Small and MiniMax EGGs
• Heavy duty construction, hermetically sealed
• Designed and manufactured in the USA

Installation:

1. Carefully insert stem from the outside through small hole in dome of the EGG; the silicone washer should remain on the outside of the EGG.
2. Carefully reach inside the dome, and slide retaining clip onto the stem. Squeeze the clip so that it slides easily.
3. Slide clip up the stem until the silicone washer ts snugly against the exterior of the dome. For accurate reading, thermometer must be installed past the groove on the lower portion of stem as shown below.

1. Bring a clean container of water to a boil.
2. Carefully place the end of the thermometer probe into boiling water past the groove on the lower portion of stem. Leave immersed for at least one minute taking care not to let the probe rest on or make contact with the container.
3. Boiling point will read 212°F/100°C at sea level. Boiling point decreases approx 2° with each 1000’ of altitude. If the thermometer does not read 212°F/100°C at sea level, calibration can be reset by carefully holding the thermometer head and turning the hex nut with a wrench to move dial in one direction or the other.

• CAUTION – Do not adjust hot thermometer with bare hands!
• CAUTION – Do not hold thermometer with bare hands while placing in boiling water as burns can result!
• CAUTION – Thermometer tip is sharp, do not leave unattended or place within reach of children.
